Dimmer Switch, 0-10V DC Low Voltage Single-Pole or 3-Way Dimmable LED/CFL/Incandescent/Halogen, Wall Plate

• ENERGY SAVING SLIDE DIMMER SWITCH: Dimmer switch can not only allow you to turn the light on and off, but also with a vertical adjustable slide bar, you are able to adjust the brightness of the light according to your needs. Smooth brightening or darkening, NO FLASHING. [[ We strongly recommend a professional electrician to install this dimmer ]]
• 960W max Incandescent; 150W max Dimmable LED/CFL
• COMPATIBLE WITH DIMMABLE 0-10V OUTPUT LIGHTS Low Voltage Dimming Driver (There will be a Purple Wire and Grey Wire for the Low Voltage Dimming function) : One dimmer switch can control multiple bulbs connected in parallel. NOTE: [Please make sure that the light?has a low voltage dimmable driver 0-10V Grey and Purple Wire]
• BRIGHTNESS ADJUSTMENT RANGE 5%-100%: provides the best dimming performance for your dimmable lights. Properly save energy for your lighting system. And adjust the different brightness of the light to meet the needs of different atmospheres Ideal for home, office, meeting room, corridor, hotel, etc.
• SAFE & MULTI-FUNCTIONS DIMMER SWITCH: High quality PC materials. Single Pole & 3 way LED Dimmer Switch, 120V-277V, 50-60Hz. You can choose the single-pole or 3-way to install according to your needs. It is also possible to install only a single dimming function or a separate switching function.
• CONVENIENT INSTALLATION: Package includes instruction and wall plate, screws, wire caps. No neutral wire or power pack required. Please read the product instruction manual carefully before using the product to understand the function and features of the product.?

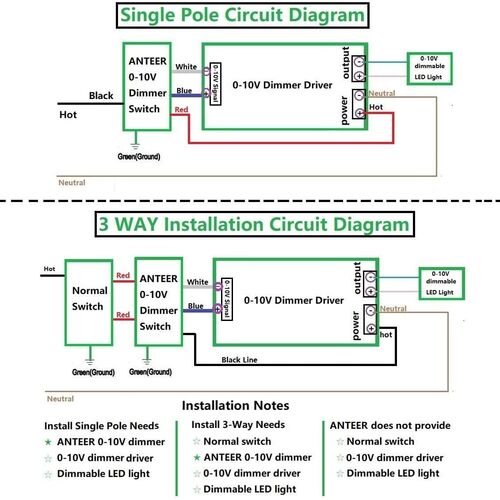

**MORE DETAILED WIRING DIAGRAMS INCLUDED WITH THE PRODUCT PACKAGING FOR 3-WAY, ETC.
